Crusher Wear Parts
Maximize Your Crushing Efficiency with Standard & Redefining Crusher Wear Parts!
Our crusher wear parts are specifically designed to enhance the performance and longevity of your crushing equipment, ensuring it operates at its full potential. We offer a wide range of premium-quality wear parts suitable for different types of crushers, and we guarantee to provide the right parts for your needs. Our team of highly skilled engineers and technicians employs advanced manufacturing processes and cutting-edge technology to produce wear parts that are durable, reliable, and cost-effective. Don’t let worn-out or damaged wear parts affect your crushing operations. Contact us today and discover the difference our crusher wear parts can make!
Just the right level
Crusher wear solutions that match and scale with your needs
Productive sustainability
Optimal chamber selection coupled with long-lasting wear parts support your production and sustainability targets
OEM quality
Applying the strictest standards and tolerances for guaranteed safety and reliability
Availability
With 5 distribution centers world-wide, we supply wear parts where and when you need them
Wear parts for your application
Right crusher wear parts for your application for maximum performance
Full support
We are here to assist from choosing crusher wear parts to installation, service and beyond
Various Type Of Crusher Wear Parts
Westom Global supplies a wide range of high-quality crusher wear parts for gyratory, cone, VSI, HSI, and jaw crusher crushing equipment, with various optimized alloy recipes to deliver increased.
Cone Crusher Wear Parts
Westom Global offering:
- Mantles
- Bowl liners
- Concaves
- Feed cones
- Main frame liners
- Protection cones
- Arm guards

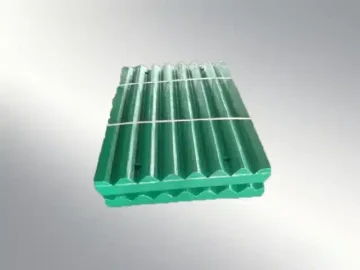

Jaw Crusher Wear Parts
Westom Global offering:
- Fixed jaw plates
- Movable jaw plates
- Cheek plates
- Toggle plates
Gyratory Crusher Wear Parts
Westom Global offering:
- Mantles
- Concave segments
- Bottom shell side liners
- Spider cap
- Arm liners
- Rim liners

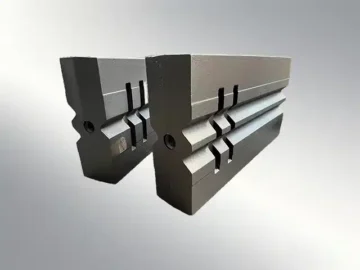

Impact Crusher Wear Parts
Westom Global offering:
- Blow bars
- Breaker plate liners
- Frame liners
- Apron liners
VSI Crusher Wear Parts
Westom Global offering:
- Rotor tip sets
- Back-up tips
- Tip / Cavity wear plates
- Upper and lower wear plates
- Top and bottom lipped wear plates
- Feed tube and feed eye ring
- Trail plates
- Retaining bars
- Taper locks
- Rotor bosses
- Anvil Ring and Anvils
Material Selection of Crusher Wear Parts
Choosing the right material is the most effective way to extend the life of the wear parts of the crusher. We not only provide standard wear parts but also provide redefining wear parts for customers.
Standard Wear Parts
Standard materials make standard wear parts.
| Material | Working Conditions | Suit Wear Parts |
|---|---|---|
| 14% Manganese | In some soft rock applications, 14% manganese can perform better than other grades of manganese.Under normal conditions, it will work harden but it is not recommended for abrasive and hard rock applications due to the likelihood that excessive wear will occur. | Crusher Jaw Plates Cheek Plates Cone Crusher Liners Gyratory Crusher Mantle Gyratory Concave Segments (Upper Intake Liners and Chamber Mid Liners) Impact Crusher Apron Liners |
| 18% Manganese | This grade of manganese is our standard. It performs well in most aggregate and recycling applications. it has an initial hardness of around 230 BHN (Brinell Hardness) but can work harden to 400 BHN during operation. | Crusher Jaw Plates Cheek Plates Cone Crusher Liners Gyratory Crusher Mantle Gyratory Concave Segments (Upper Intake Liners and Chamber Mid Liners) Impact Crusher Apron Liners |
| 22% Manganese | Like the 18% manganese, this material has a higher initial hardness of 248BHN. On hard rock applications, 22% manganese can offer longer wear life, increased uptime and can outperform other grades of material. | Crusher Jaw Plates Cheek Plates Cone Crusher Liners Gyratory Crusher Mantle Gyratory Concave Segments (Upper Intake Liners and Chamber Mid Liners) Impact Crusher Apron Liners |
| 20% Chrome | Working condition with large feed particle size | Crusher Blow Bars Impact Plates Side Plates VSI Feed Tube VSI Shoes VSI Anvils Gyratory Concave Segments (Chamber Bottom Liners) |
| 27% Chrome | Working conditions with medium and small feed size | Crusher Blow Bars Impact Plates Side Plates VSI Feed Tube VSI Shoes VSI Anvils Gyratory Concave Segments (Chamber Bottom Liners) |
Redefining Wear Parts
According to the market’s development and demand, Westom Global has developed several unique materials for wear parts.
| Standard Material | Upgraded Version Material | Suit Wear Parts | Comparison of the two materials |
|---|---|---|---|
| Manganese Steel | Manganese Steel + TIC | Crusher Jaw Plates Crusher Blow Bars Cone Crusher Liners Gyratory Crusher Mantle | For crusher jaw plate, increase service life by 100%-150% For crusher blow bars, increase service life by 60%-100% For cone crusher liners, increase service life by 50%-100% For gyratory crusher mantle, increase service life by 30%-60% |
| Chrome Steel | Chrome Steel + Ceramic | Crusher Blow Bars Impact Crusher Plate VSI Anvils & Shoes | For crusher blow bars, increase service life by 200%-300% For impact crusher plates, increase service life by 150%-200% For VSI anvils & shoes, increase service life by 150%-200% |
FAQ
Westom Global has manufactured all popular brands of wear parts, so you can send your inquiry part number or drawings.
Step 1: We need to know your working conditions, such as the crushed material and input sizes.
Step 2: Our engineer will make design drawings for you.
Step 3: Manufacture and send you goods.
Step 4: After you use it, you should give us the feedback and pay the rest of the payment.
Key factors to consider include the type of crusher, the type of material being crushed, the desired output size, and the operating conditions.
