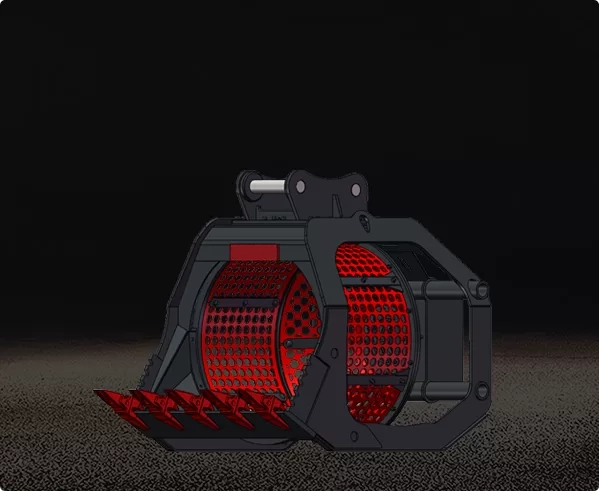

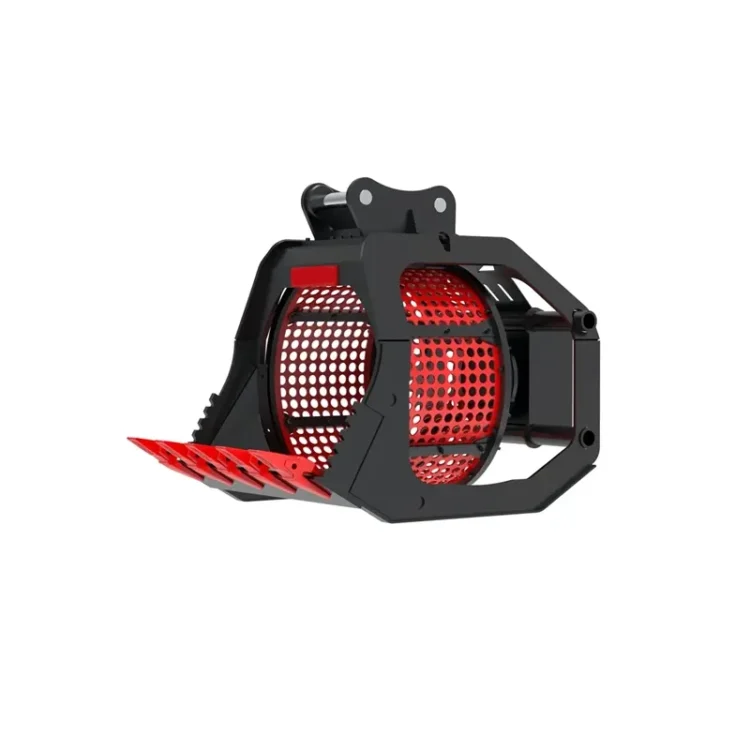

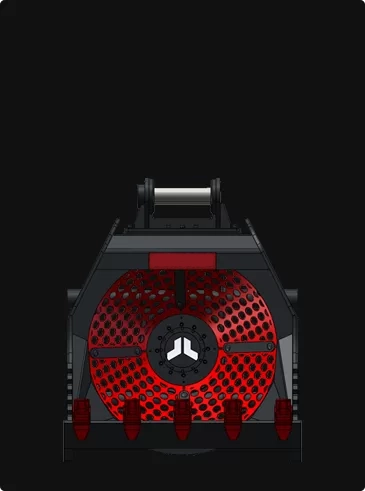

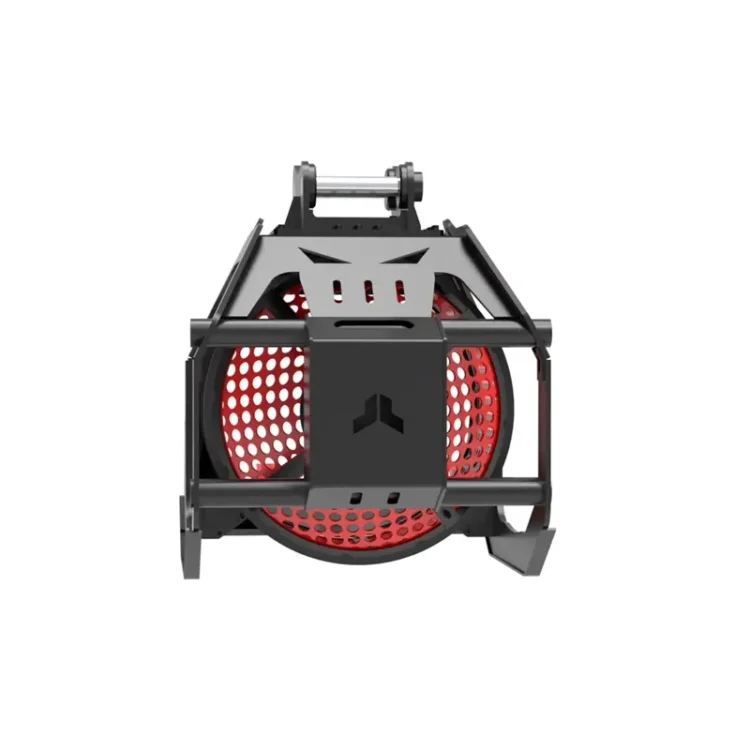

Rotary Screening Bucket
Rotary Screening Bucket By Westom Global
The rotary screening function generates centrifugal force by spinning the screening drum, allowing for quick and precise material separation. Featuring an integrated waterproof hydraulic rotary motor, it ensures fast, smooth, and reliable screening operations. The modular, interchangeable screening panels allow customization based on specific project needs.
Efficient Material Sorting & Screening
The Terra Grip Rotary Screening Bucket is engineered for maximum durability and productivity, making material sifting and separation more efficient. The solid steel round tubular tines ensure a robust screening drum, capable of efficiently sifting out soil and debris.
Key Features:
- Heavy-Duty Screening Drum – Constructed with solid steel tubular tines for high durability.
- Fast & Efficient Operation – The rotating drum speeds up the sifting process.
- Interchangeable Screening Panels – Adapt to different material sizes with modular, replaceable screens.
- Hydraulic Rotary Motor – Integrated waterproof design ensures smooth and efficient performance.
- Wide Range of Sizes – Suitable for excavators from 1T to 50T.
Specifications:
| Model | Equipment (Tonnes) | Load Capacity (m³) | Dimensions (L×W×H) (mm) | Drum Depth (mm) | Drum Diameter (mm) | Oil Flow (L/min) | Pressure (MPa) | Weight (kg/lbs) | Mesh Size Options |
|---|---|---|---|---|---|---|---|---|---|
| BSB04 | 2-3.5T | 0.06 | 1015 × 580 × 887 | 350 | 500 | 10 | 20 | 205 / 452 | Round: Φ15 / Φ20 |
| BSB06 | 4-6T | 0.14 | 1325 × 780 × 940 | 475 | 700 | 15 | 20 | 390 / 860 | Φ25 / Φ30 / Φ35 |
| BSB10 | 7-10T | 0.3 | 1480 × 900 × 1090 | 580 | 810 | 20 | 20 | 670 / 1477 | Square: 40×40 / 50×50 / 60×60 / 70×70 / 80×80mm |
| BSB16 | 12-16T | 0.75 | 2085 × 1200 × 1420 | 940 | 1120 | 50 | 20 | 1090 / 2403 | |
| BSB25 | 18-25T | 1.1 | 2405 × 1450 × 1660 | 1015 | 1320 | 50 | 20 | 1900 / 4189 | - |
| BSB35 | 28-35T | 1.8 | 2720 × 1500 × 1820 | 1195 | 1350 | 60 | 20 | 2500 / 5512 | - |
| BSB50 | 40-50T | 2.4 | 3220 × 1810 × 2250 | 1395 | 1650 | 80 | 20 | 3600 / 7937 | - |
For efficient and high-performance screening solutions, choose Terra Grip Rotary Screening Buckets—designed for durability and superior material separation.
