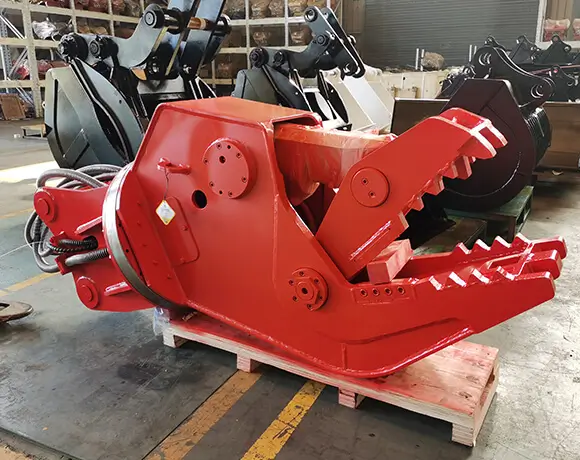

Terra Grip Concrete Pulverizer
Terra Grip Customizable Hydraulic Concrete Pulverizer for Earthmoving
Terra Grip Hydraulic Concrete Crushers are designed for the controlled demolition of concrete and reinforced concrete with precision, force, and significantly less noise and vibration than traditional impact tools. These crushers are highly effective on foundations, walls, and beams and require a low-pressure hydraulic power source or pump to operate.
Ideal for safe and controlled demolition of roads, bridges, and foundations, the Terra Grip Hydraulic Concrete Crushers can easily crush reinforced concrete and cut through light steel structures. This allows for material separation and recycling while simultaneously improving the handling of the materials.
Key Features:
- Utilizes the excavator’s hydraulic power to crush concrete and cut rebar—no additional hydraulics required.
- Constructed from high-strength, abrasion-resistant steel.
- Wear-resistant alloy pivot bearings.
- Equipped with replaceable shear blades for cutting rebar.
- Pin-on replaceable jaws come standard.
Commonly used tonnage parameters:
| Model | Tonnes (t) | Opening Size (mm) | Crusher Force-1 (KN) | Crusher Force-2 (KN) | Weight (kg) |
|---|---|---|---|---|---|
| BNV-70 | 6-7 | 450 | 140 | 160 | 360 |
| BNV-120 | 10-15 | 770 | 210 | 330 | 600 |
| BNV-200 | 20-25 | 800 | 300 | 520 | 1100 |
This attachment is a powerful and efficient solution for demolition tasks, offering a more controlled and environmentally friendly way to handle concrete and reinforced structures.
