Rotating Grapples

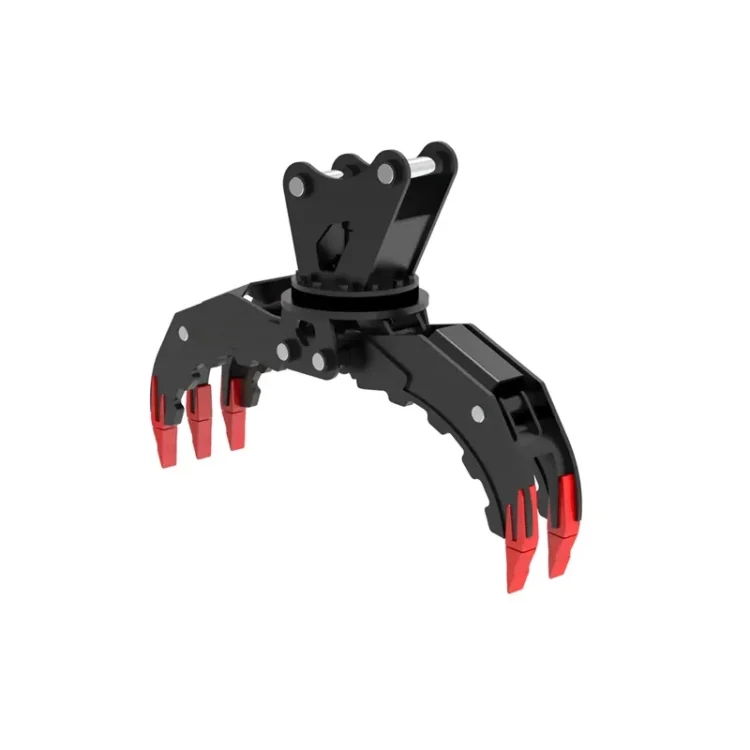

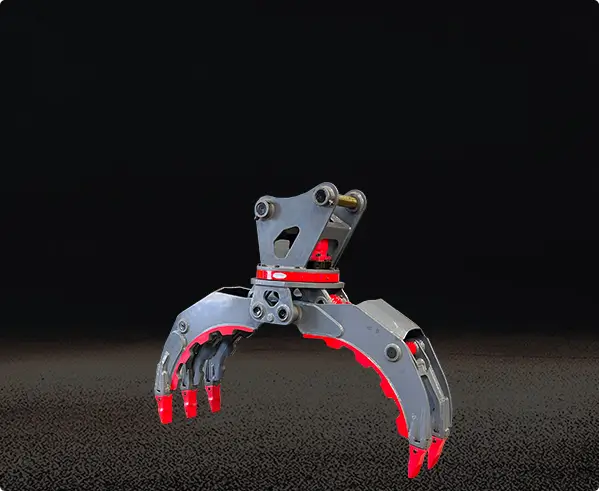

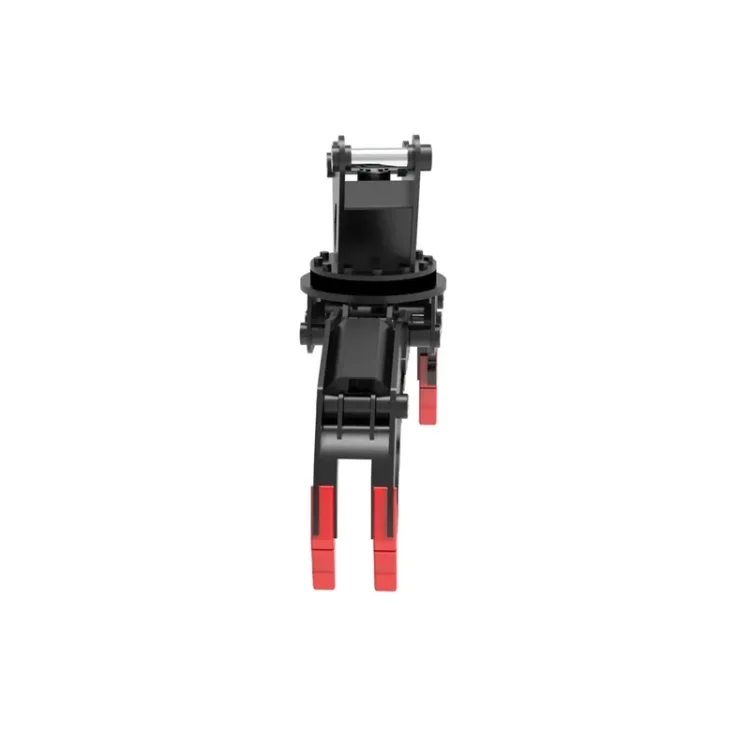

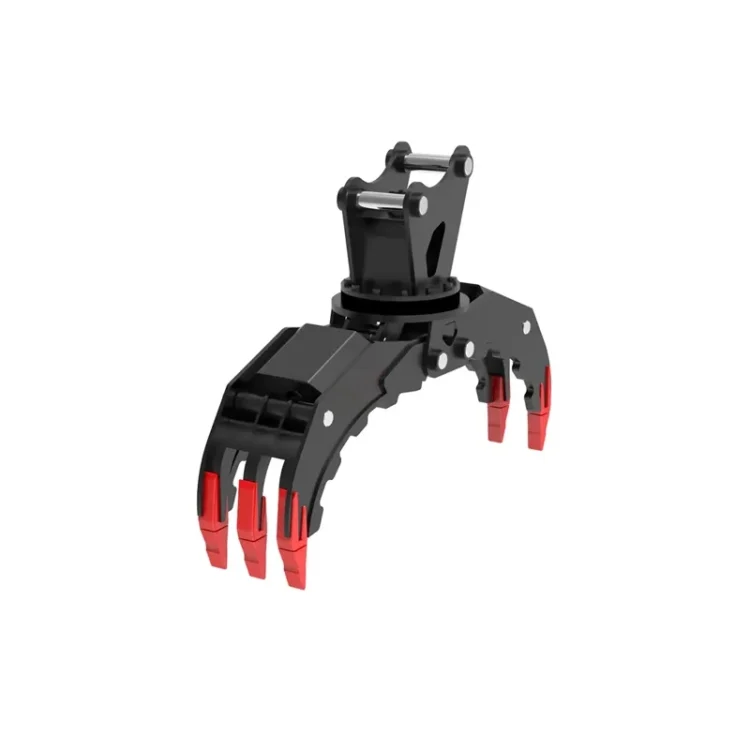

Hydraulic 360 Degree Rotary Grapple By Westom Global
The Hydraulic 360 Degree Rotary Grapple is designed to provide superior performance for excavators, enabling them to rotate and grapple materials efficiently. The system requires two sets of hydraulic valve blocks and pipelines, utilizing the excavator’s hydraulic pump as the power source. The power is divided into two parts: one for rotation and the other for grapple work. This versatile tool is ideal for handling a wide range of materials and applications, making it essential for various construction, demolition, and material handling tasks.
Specifications:
| Model | BRHG50 | BRHG80 | BRHG120 | BRHG200 | BRHG300 | BRHG400 |
|---|---|---|---|---|---|---|
| Weight (Kg) | 300 | 390 | 740 | 1380 | 1700 | 1900 |
| Max Opening (mm) | 1300 | 1400 | 1800 | 2300 | 2500 | 2500 |
| Operating Pressure (Kg/m²) | 110-140 | 120-160 | 150-170 | 160-180 | 160-180 | 180-200 |
| Set Up Pressure (Kg/m²) | 170 | 180 | 190 | 200 | 210 | 250 |
| Operating Flux (L/Min) | 30-55 | 50-100 | 90-110 | 100-140 | 130-170 | 200-250 |
| Suitable Excavator (Ton) | 4-6 | 7-11 | 12-16 | 17-23 | 24-30 | 31-40 |
The Hydraulic 360 Degree Rotary Grapple is an essential tool for increasing efficiency in material handling tasks. Its durable construction and high-performance design make it perfect for a wide range of excavating and lifting operations. Contact us for more details!
