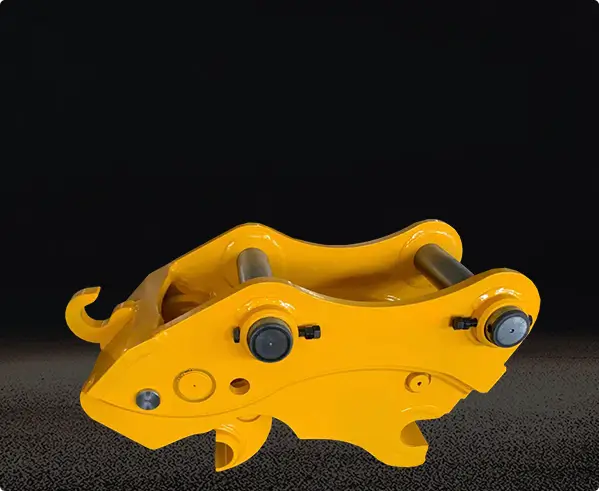

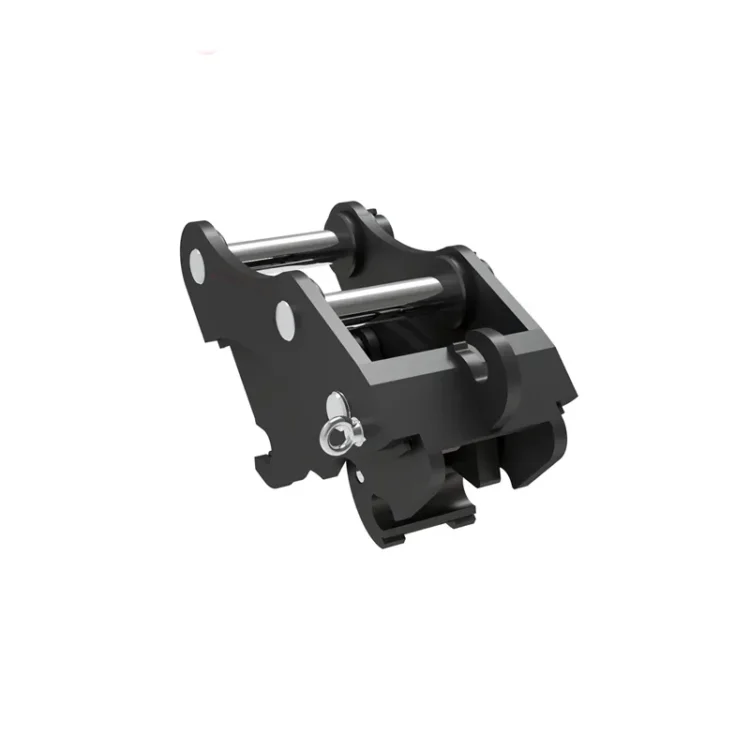

Hydraulic Quick Coupler
Hydraulic Quick Coupler By Westom Global
The Excavator Hydraulic Quick Coupler, also known as a quick hitch, allows for quick installation on the excavator, enabling seamless switching between various front-end working attachments (such as buckets, rippers, hammers, hydraulic shears, etc.). This increases the versatility of your excavator, saving time and improving operational efficiency.
Excavator Hydraulic Quick Coupler
Hydraulic Quick Couplers are devices installed at the outer end of the work equipment of different types of excavators. The Terra Grip Quick Coupler System allows for efficient and effortless attachment changes, either mechanically or hydraulically operated. The mechanical version provides a cost-effective solution for frequent attachment changes, while the hydraulic model offers the convenience of changing attachments directly from the cab seat.
Specifications:
| Model | Excavator Size (Ton) | Type | Weight (Kg) | Pin Center Distance (mm) | Oil Cylinder Stroke (mm) | Pin Diameter (mm) | Hydraulic Flow (L/Min) |
|---|---|---|---|---|---|---|---|
| BHQC40 | 1-4 | Hydraulic | 50 | 180-210 | 208-318 | 25-45 | 10-20 |
| BHQC80 | 4-8 | Hydraulic | 80 | 235-310 | 340-450 | 45-50 | 10-20 |
| BHQC150 | 12-16 | Hydraulic | 180 | 350-410 | 340-486 | 60-65 | 10-20 |
| BHQC200 | 18-25 | Hydraulic | 350 | 430-510 | 256-390 | 70-80 | 10-20 |
| BHQC250 | 25-30 | Hydraulic | 550 | 475-560 | 413-590 | 90-100 | 10-20 |
| BHQC300 | 30-40 | Hydraulic | 800 | 550-650 | 520-590 | 100-110 | 10-20 |
Details of Our Specifications:
- Excavator Hydraulic Quick Coupler (Quick Hitch Types):
Suitable for machines ranging from 1 to 80 tons. Customization options available upon request. - Spare Parts & Packaging:
Spare parts, pipeline, toolbox, and export-grade wooden box packaging are included. We also provide online guidance for product installation.
