Cast Materials
Westom Global’s Cast Materials
Westom Global is a manufacturer specializing in producing high-quality wear-resistant castings for mining, quarrying, and other heavy industries. The materials used by Westom Global depend on the specific application and customer requirements, but generally include:
- Austenitic manganese steels 13%MN, 18%MN , 22% MN MN13CR2, MN18CR2, MN22CR2 MN13CRMO
- Chromium white anti-wear cast iron. Cr26Mo0.5, Cr26MO1, Cr13, Cr28, Cr28Mo
- Chromium white anti-wear cast iron. Cr26Mo0.5, Cr26MO1, Cr13, Cr28, Cr28Mo
- Alloy steel. Cr-mo alloys (L2B and L2C), 30CrNiMo, Low carbon alloy steel
- TIC inserts wear parts
- Ceramic inserts wear parts
Manganese Steel Casting
Austenitic manganese steel is the major cast material in Westom Global. Westom Global is one of the largest manganese steel casting foundries in the China market, which focuses on casting Hadfield steel for crusher liners, mill liners, shredder wear liners, and apron feeder flights. Currently, our company is capable of designing, engineering, and manufacturing castings ranging anywhere from 5 kgs to 18000 kgs in weight.
Suit Standards
- US: ASTM A128/A532
- Australia: AS2074 H1A/-H1B
- British: BS 3100/ BS4844
- German: GX 130 MnCr
- South Africa: SABS 407 Type 1 & 2
- Japan: SCMnH11
- China: GB/T 5680-2010
Chromium Steel Casting
Westom Global is one of the most important chromium steel casting foundries in the China markets. We manufacture more than 10, 000 tons of chromium wear parts for the quarrying, mining, and cement industry. The chromium steel casting parts include crusher blow bars, impact plates, roll rings, roller mill rolls, and VSI wear parts.
Suit Standards
- ASTM A532 Class II Type A
- ASTM A532 Class II Type B
- ASTM A532 Class II Type D
- ASTM A532 Class IIi Type A
Alloy Steel Casting
Westom Global is an alloy steel casting foundry in the China market. We can analyze the melt quality to produce a low alloy steel casting that works for different needs, no matter how specific the requirements are. We are also on hand to offer free technical advice and to answer all the low alloy steel casting questions you might have. We give our customers free quotes within two days and once an order has been processed, we are happy to quickly provide a delivery date.
Our alloy steel casting parts include:
- Cr-mo alloy steel (L2B and L2C) mill liners

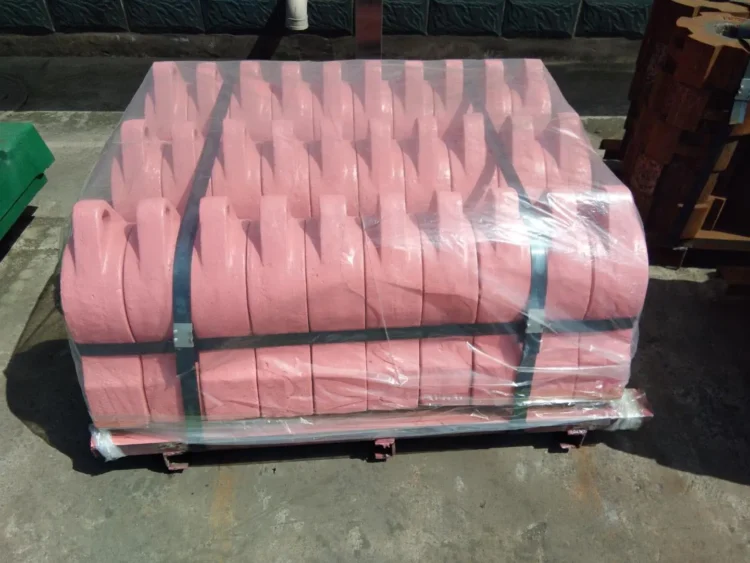

- 30CrNiMo alloy hammer
- Low carbon alloy steel hammer
- Alloy steel apron feeder pan

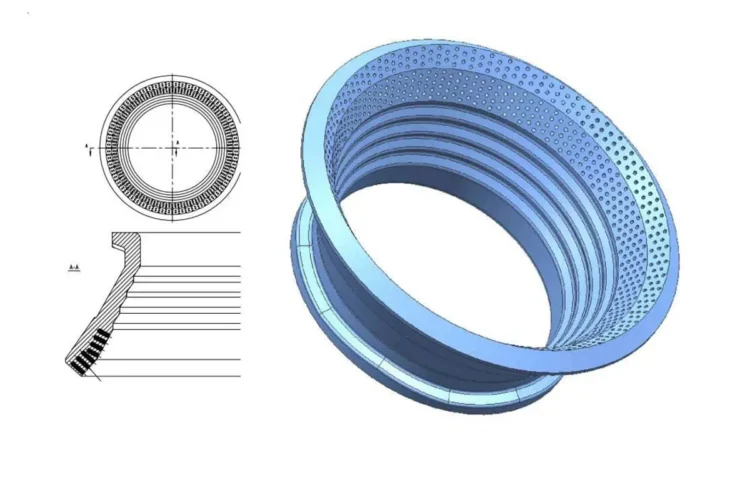

TIC Inlay Wear Parts
Our engineers inlay the titanium carbide rods on the working surface of the liner. When the stone enters the crushing chamber, it first comes into contact with the raised titanium carbide rods, which wear very slowly due to their ultra-hardness and wear resistance. At the same time, due to the protective effect of the titanium carbide rods, the matrix of the high manganese steel also slowly comes into contact with the stone and the matrix slowly hardens.
Our TIC inlay wear parts include:
- TIC inlay jaw plate
- TIC inlay cone liner
- TIC inlay crusher hammer
- TIC inlay blow bars

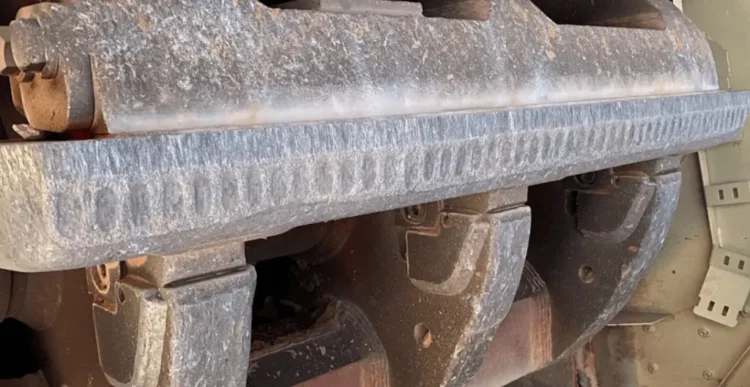

Ceramic Inserts Wear Parts
Ceramic inserts are designed to be extremely hard, durable, and resistant to wear, abrasion, and impact. In industrial settings, ceramic inserts are commonly used in wear parts such as cutting tools, pumps, valves, and other components. They are also used in high-wear areas of machinery, such as the liners, blades, and other parts of crushers and mills.
Our ceramic inserts wear parts include:
- Martensitic + Ceramic Blow Bars
- Chrome + Ceramic Blow Bars
- Ceramic Inserts Crusher Hammers
- Ceramic Inserts Hammer Head
CUSTOM CAST MATERIAL
As a wear material company, Westom Global can provide OEM services for special materials according to customer requirements. No matter what material you need, contact us.
