Side Excavator Hammer

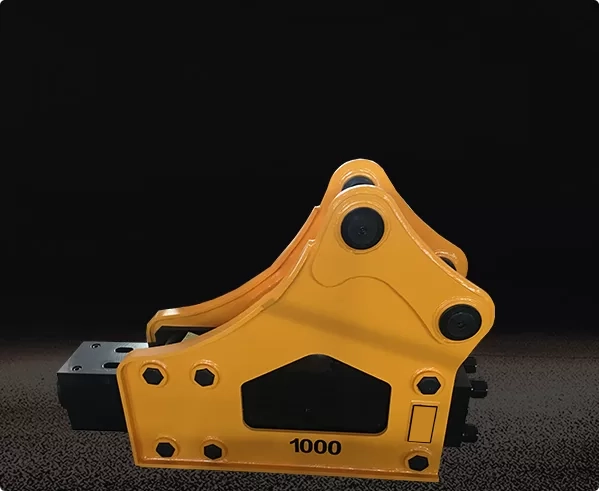

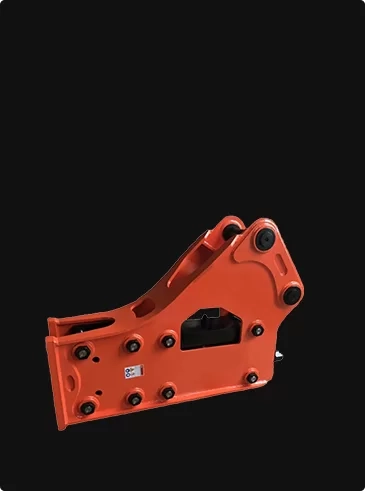

Side Type Excavator Hammer By Westom Global
The Side Type Excavator Hammer is primarily designed for sharpening and breaking materials when the object being crushed is relatively narrow. This hammer utilizes the cone-shaped design of its hammerhead to create a cutting effect, allowing the broken material to split along the cone surface. This enables efficient crushing. The Triangle Hydraulic Hammer is commonly used on excavators or backhoe loaders.
Kinds of Chisels for Excavator Hammer:
- Moil Point
- Blunt Tool
- Flat Chisel
- Conical Point
The Hydraulic Hammer, also known as the Hydraulic Breaker, is powered by hydrostatic pressure, driving a piston that reciprocates at high speed. The piston strikes the drill rod, which then breaks solids such as ore and concrete.
Applications:
Excavator hammers are widely used in various industries, including gravel, mining, road construction, civil engineering, demolition, metallurgy, and tunnel engineering. These hammers come in several varieties, such as:
- Triangular Breaker
- Vertical Breaker
- Silent Breaker
- Slip Breaker (special for skid loaders)

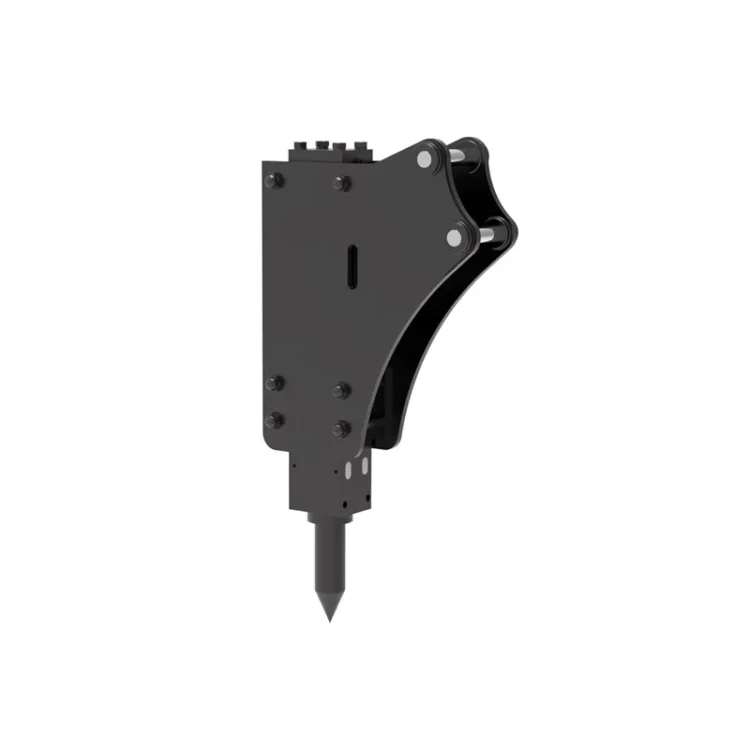

Side Type Hydraulic Hammer
The Side Type Hydraulic Hammer is primarily used for precision cutting and breaking when the material is narrow. By utilizing the cone-shaped hammer head, it produces a cutting action that splits the material along the cone’s surface to achieve optimal crushing efficiency.
Specifications:
| Model | Tone (T) | Side Type Weight (kg) | Top Type Weight (kg) | Silenced Type Weight (kg) | Skid Steer Weight (kg) | Working Oil Flow (L/min) | Working Pressure (kg/cm²) | Impact Rate (b.p.m) | Chisel Diameter (mm) |
|---|---|---|---|---|---|---|---|---|---|
| HB450 | 1-1.5T | 100 | 122 | 150 | 270 | 20-30 | 90-100 | 500-1000 | 45 |
| HB530 | 2.5-4.5T | 130 | 150 | 190 | 350 | 25-45 | 90-120 | 500-1000 | 53 |
| HB680 | 3-7T | 250 | 300 | 340 | 500 | 36-60 | 110-140 | 500-900 | 68 |
| HB750 | 6-9T | 380 | 430 | 480 | 650 | 50-90 | 120-170 | 400-800 | 75 |
| HB850 | 7-14T | 510 | 550 | 580 | N/A | 45-85 | 127-147 | 400-800 | 85 |
| HB1000 | 10-15T | 760 | 820 | 950 | N/A | 80-120 | 150-170 | 400-700 | 100 |
| HB1250 | 15-25T | 1320 | 1380 | 1450 | N/A | 90-120 | 150-170 | 400-650 | 125 |
| HB1400 | 20-30T | 1700 | 1740 | 1850 | N/A | 150-190 | 165-185 | 400-500 | 140 |
| HB1500 | 25-30T | 2420 | 2500 | 2600 | N/A | 150-230 | 170-190 | 300-450 | 150 |
| HB1650 | 30-45T | 2900 | 3100 | 3150 | N/A | 200-260 | 180-200 | 250-400 | 165 |
| HB1750 | 40-55T | 3750 | 3970 | 4150 | N/A | 200-280 | 180-200 | 250-350 | 175 |
Material Quality and Durability:
- Cylinder Material: The cylinder of the hydraulic hammer is made from 20CrMo steel, a high-strength alloy steel that ensures durability and excellent performance under high pressure and heat.
- Chisel Material: The chisels are crafted from 42Cr steel, offering high compressive strength, superior cutting performance, and long-lasting durability. This material withstands heat treatment, deformation, and continuous high temperatures, providing a longer service life.
Packaging and Maintenance:
The hydraulic hammer is carefully packaged in export wooden boxes to prevent moisture damage during transit. It also includes essential maintenance tools to ensure smooth operation and extend the lifespan of the equipment.
